Step By Step Guide to Configure Database Mirroring In SQL Server

In this example I am using "AdventureWorks" for Mirrored Database.

For creating a new mirror database requires taking a full backup of the principal database and a subsequent log backup and restoring them both onto the mirror server instance, using WITH NORECOVERY. The mirror database must be in the RESTORING state for mirroring to work.

Step1: Take full backup of the database on the Principal server.

Full Backup Genera Tab

Step2: Perform a Transaction Log backup on the Principal server.
Transaction Log Genera Tab


Step3: Perform restore in the destination server with the same name. Make sure that restore the database with NORECOVERY.

Restore General Tab

Restore Option Tab
Step4: Perform another restore of the Transaction Log, with the No Recovery option.
Log Restore General Tab


Log Restore Option Tab
Step5: You will notice that the 'AdventureWorks' database on the Mirror server now is marked as "Restoring..." and can't be accessed.

Step6: Now starts the actual mirror setup, on your Prinicpal server right click and select Properties on the 'AdventureWorks' database and choose the Mirroring tab and then Click "Configure Security...".

Step7: Now click Next on the wizard.

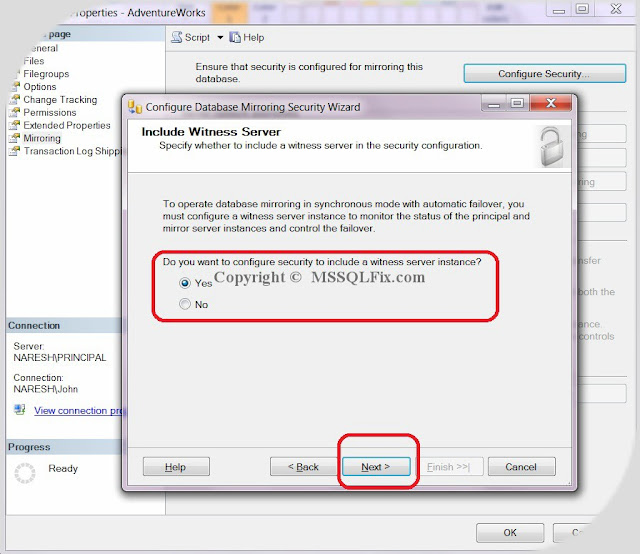

Step8: Select whether you want a Witness server or not, you dont want witness server then click 'NO' (In this article i am covering witness server, so i slected "YES') and then click Next.

Step9: Now click Next.

Step10: In the Principal Server, leave everything as its default and click Next.


Step11: In the Mirror Server Instance stage, click Connect, select the mirror server instance and provide the credentials then click Next.

Step12: In the Witness Server Instance stage, click Connect, select the Witness server instance(In this article my witness server name is Monitorserver) and provide the credentials then click Next.

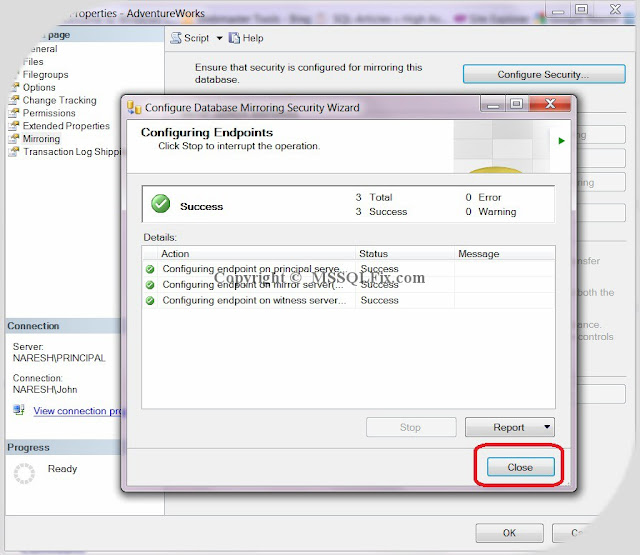

Step13: If everything successfully configured then click Next.

Step14: Now click Start Mirroring, done, you successfully configured Mirroring.


If you have any issues regarding mirroring setup, leave a comment.  :)

Here you can find how to setup a database mirroring using Certificates.
